Project Description

  • 6 axis industry robot 6kg payload
  • 6 axis 20kg payload indsutry robot
  • 6 axis indsutry robot
  • 10kg payload six axis industry robot
  • 6 axis indsutry robot
  • Industry Robot_30kg Payload
  • 6 axis indsutry robot

The Best Cost Effective Industry Robot

Payload: 3kg, 6kg,10kg, 20kg,30kg and 50kg
6 axis joint industry robot
Arm motion radius:750mm~2950mm
High precision: 0.05mm
22DI/18DO, support I/O extension, AI/AO optional
Communication: Modbus, Ethernet
Protection:IP65

CONTACT US NOW

Industry Robot 3kg Payload

LT950-A-6

6 axis indsutry robot

Rated payload 3KG
Work radius 950mm
Structural style Series connection
Number of axis 6
Repetitive accuracy ±0.05mm

Max operation range

Axis 1 ±165°
Axis 2 +120°/-72°
Axis 3 +87.5°/-72°
Axis 4 ±360°
Axis 5 ±115°
Axis 6 ±450°
Max speed



Axis 1 148°/sec
Axis 2 148°/sec
Axis 3 222°/sec
Axis 4 222°/sec
Axis 5 222°/sec
Axis 6 360°/sec
Net weight ≈72kg
Installation Gound/rack/ceiling
Ambient temperature -20°C~80°C

Applications

Material handling, parts transmission, welding, machine management, stacking, packaging, testing, deburring, grinding, gluing, assembly, spraying.

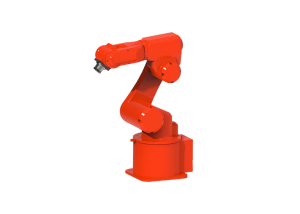

Industry Robot_6kg Payload

LT 750 – B- 6

6 axis industry robot 6kg payload

Rated payload 6KG
Work radius 750mm
Structural style Series connection
Number of axis 6
Repetitive accuracy ±0.05mm
Max operation range Axis 1 ±165°
Axis 2 +120°/-72°
Axis 3 +87.5°/-72°
Axis 4 ±360°
Axis 5 ±115°
Axis 6 ±450°
Max speed Axis 1 148°/sec
Axis 2 148°/sec
Axis 3 222°/sec
Axis 4 222°/sec
Axis 5 222°/sec
Axis 6 360°/sec
Net weight ≈ 70kg
Installation Gound/rack/ceiling
Ambient temperature -2 0°C~80°C

Applications

Material handling,parts conveying, machine operation,inspection,gluing,assembly

Industry Robot 10kg Payload

LT 1500 – C- 6

10kg payload six axis industry robot

Rated payload 10KG
Work radius 1500mm
Structural style Series connection
Number of axis 6
Repetitive accuracy ±0.05mm
Max operation range Axis 1 ±165°
Axis 2 +135°/-75°
Axis 3 +78°/-76.5°
Axis 4 ±360°
Axis 5 ±115°
Axis 6 ±450°
Max speed Axis 1 148°/sec
Axis 2 148°/sec
Axis 3 150°/sec
Axis 4 222°/sec
Axis 5 222°/sec
Axis 6 360°/sec
Net weight ≈120kg
Installation Ground/rack/ceiling
Ambient temperature -20℃~80°C

Application

Material handling, parts transmission, welding, machine management, stacking, packaging, testing, deburring, grinding, gluing, assembly, spraying.

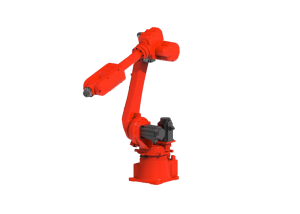

Industry Robot 10kg Payload

LT 2100 – C- 6

Industry robot 6 axis

Rated payload 10KG
Work radius 2100mm
Structural style Series connection
Number of axis 6
Repetitive accuracy ±0.08mm
Max operation range Axis 1 ±180°
Axis 2 +139°/-60°
Axis 3 +56°/-150°
Axis 4 ±360°
Axis 5 ±115°
Axis 6 ±450°
Max speed Axis 1 148°/sec
Axis 2 148°/sec
Axis 3 150°/sec
Axis 4 222°/sec
Axis 5 222°/sec
Axis 6 360°/sec
Net weight ≈255kg
Installation Gound/rack/ceiling
Ambient temperature -20°C~80°C

Applications

Material handling, parts transmission, welding, machine management, stacking, packaging, testing, deburring, grinding, gluing, assembly, spraying.

Industry Robot_20kg Payload

LT 1850 – D- 6

6 axis 20kg payload indsutry robot

Rated payload 20KG
Work radius 1850mm
Structural style Series connection
Number of axis 6
Repetitive accuracy ±0.08mm
Max operation range Axis 1 ±180°
Axis 2 +139°/-60°
Axis 3 +56°/-150°
Axis 4 ±360°
Axis 5 ±115°
Axis 6 ±450°
Max speed Axis 1 148°/sec
Axis 2 148°/sec
Axis 3 150°/sec
Axis 4 222°/sec
Axis 5 222°/sec
Axis 6 360°/sec
Net weight ≈250kg
Installation Gound/rack/ceiling
Ambient temperature -20°C~80°C

Applications

Material handling, parts transmission, welding, machine management, stacking, packaging, testing, deburring, grinding, gluing, assembly, spraying.

Industry Robot 30kg Payload

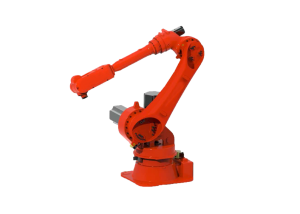

LT 2300 – 3C- 6

Industry Robot_30kg Payload

Rated payload 30kg
Work radius 2300mm
Structural style Series connection
Number of axis 6
Repetitive accuracy ±0.15mm
Max operation range Axis 1 ±175°
Axis 2 +140°/-77°
Axis 3 +175°/-75°
Axis 4 ±360°
Axis 5 ±115°
Axis 6 ±360°
Max speed Axis 1 180°/sec
Axis 2 180°/sec
Axis 3 150°/sec
Axis 4 222°/sec
Axis 5 222°/sec
Axis 6 360°/sec
Net weight ≈700kg
Installation Ground/rack/ceiling
Ambient temperature -20°C~80°C

Applications

Material handling, parts transmission, welding,stacking,cutting, deburring

Industry Robot 30kg Payload

LT 2950 – 3C- 6

6 axis indsutry robot

Rated payload 30kg
Work radius 2950mm
Structural style Series connection
Number of axis 6
Repetitive accuracy ±0.15mm
Max operation range Axis 1 ±175°
Axis 2 +140°/-77°
Axis 3 +175°/-75°
Axis 4 ±360°
Axis 5 ±115°
Axis 6 ±360°
Max speed Axis 1 180°/sec
Axis 2 180°/sec
Axis 3 150°/sec
Axis 4 222°/sec
Axis 5 222°/sec
Axis 6 360°/sec
Net weight ≈700kg
Installation Gound/rack/ceiling
Ambient temperature -20°C~80°C

Applications

Material handling, parts transmission, welding,stacking,cutting, deburring

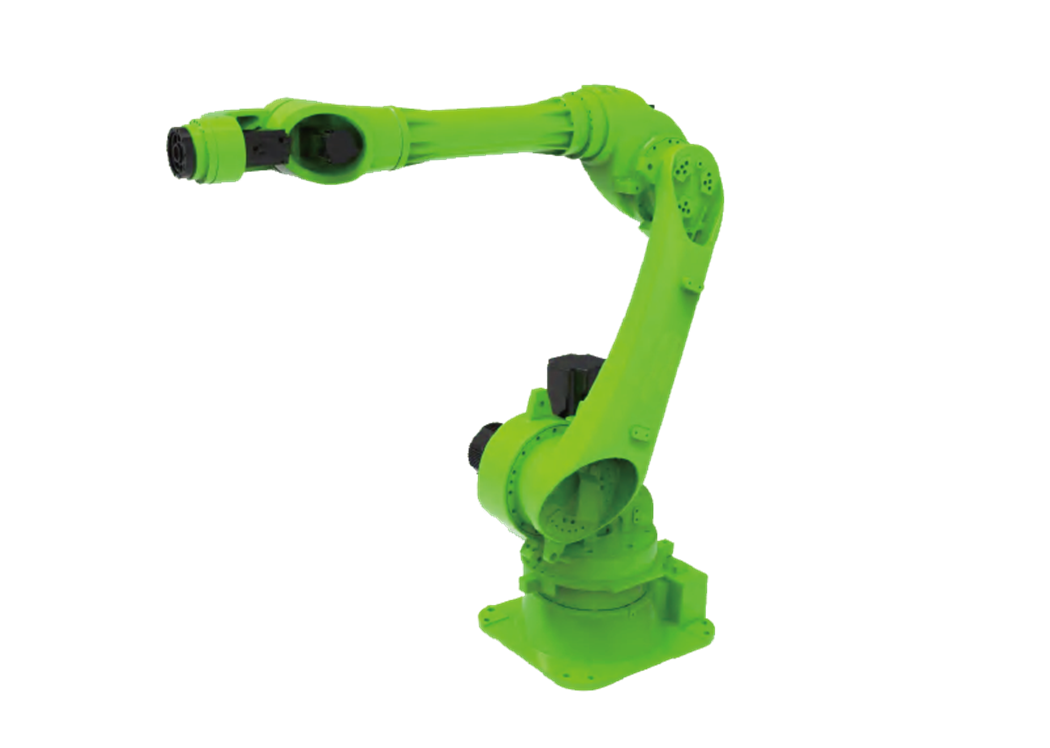

Industry Robot_50kg Payload

LT 2100 – E – 6

6 axis indsutry robot

Rated payload 50kg
Work radius 2100mm
Structural style Series connection
Number of axis 6
Repetitive accuracy ±0.1mm
Max operation range Axis 1 ±180°
Axis 2 +140°/-77°
Axis 3 +75°/-184°
Axis 4 ±360°
Axis 5 ±115°
Axis 6 ±450°
Max speed Axis 1 148°/sec
Axis 2 148°/sec
Axis 3 150°/sec
Axis 4 222°/sec
Axis 5 222°/sec
Axis 6 360°/sec
Net weight ≈750kg
Installation Gound/rack/ceiling
Ambient temperature -20°C~80°C

Applications

Material handling, parts transmission, welding,stacking,cutting, deburring
